2023
20 SEMI-DETACHED HOUSES
VIDEO PRESENTATION
INTRODUCTION
DELIVERY
15 RENDERS + 9 RENDERS WITH LIGHTING VARIATION + VIDEO
MODELING
The company in charge of the work delivered a previous design of the 20 houses with their respective plots.
A basic modeling that had to be redone and organized with our company’s own parametric families, materials and construction elements prepared for the correct export to rendering software.
This has been a work of planning and organization that has cost most of the work, even more when there were constant changes in the design of the studio.
The good part is always the optimized organization in the BIM software that once done allows an easy implementation of changes and export to rendering software.
These working methodologies save a lot of time and money as long as the models are well organized.
All the elements of doors, windows and kitchens are created by ourselves with our own parameters and materials. We do not use external families.
THE ENVIRONMENT

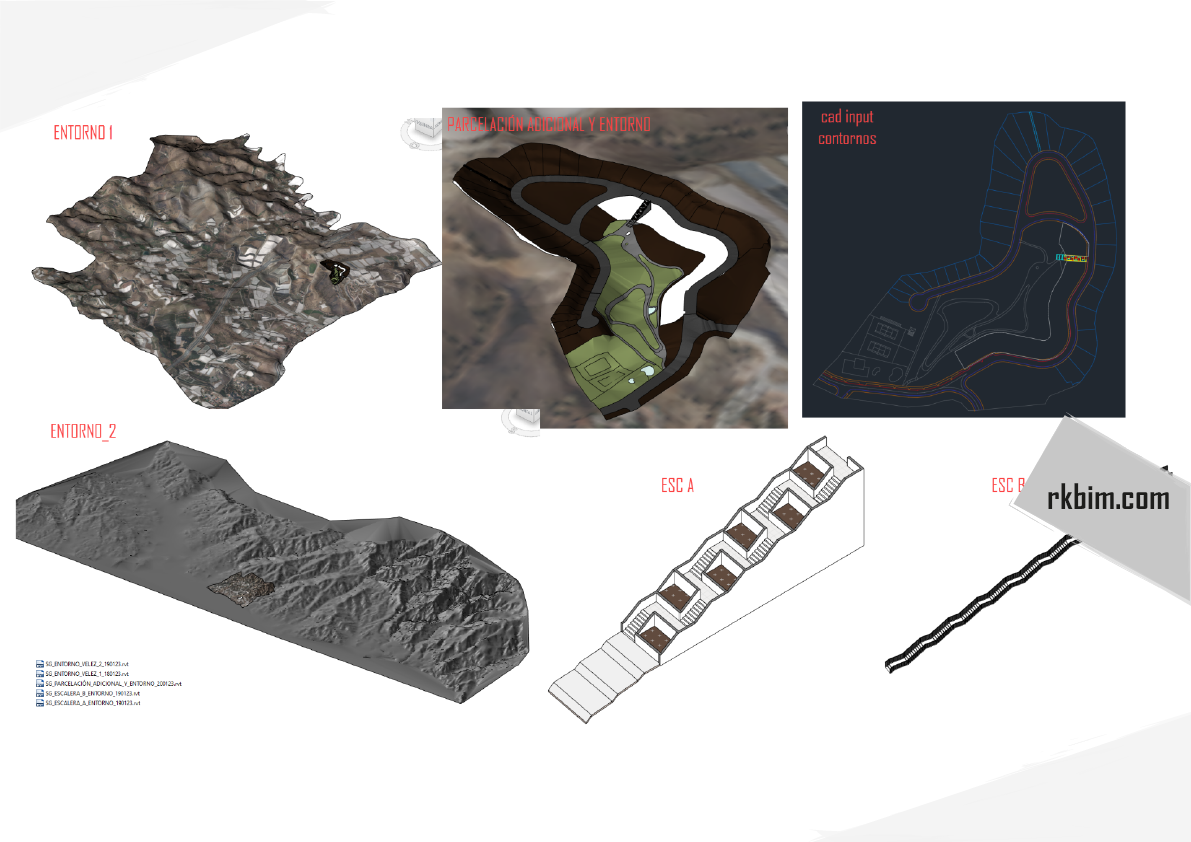

The environment has been done by topographic extraction from the state mapping services using QGIS software.
For this work, topographic versions were also extracted for BIM modeling software, in order to carry out a previous study of the plot.
All texturing has been done with procedural textures as well as trying to replicate the natural environment of the site and all its vegetation.
We have applied a color variation per instance to each vegetation model as well as to the leaves in each vegetation element to achieve the maximum realism possible.
IMAGE FORMAT
All the renders are made in EXR 32 bits formats, being the final image of 16 bits of color depth.
POSTPRODUCTION
The editing of the images has been done with different render passes; the general and additional lighting passes for a better control in the final editing of the images for delivery.
We have also worked in the rendering software with different HDRI high dynamic range ambient lights to have the possibility to recreate different atmospheres.
This allows us to get different atmospheres in the renders of the same scene. Without proper planning this would take more time and effort than if planned well in advance.
ENVIROMENT
RENDERS

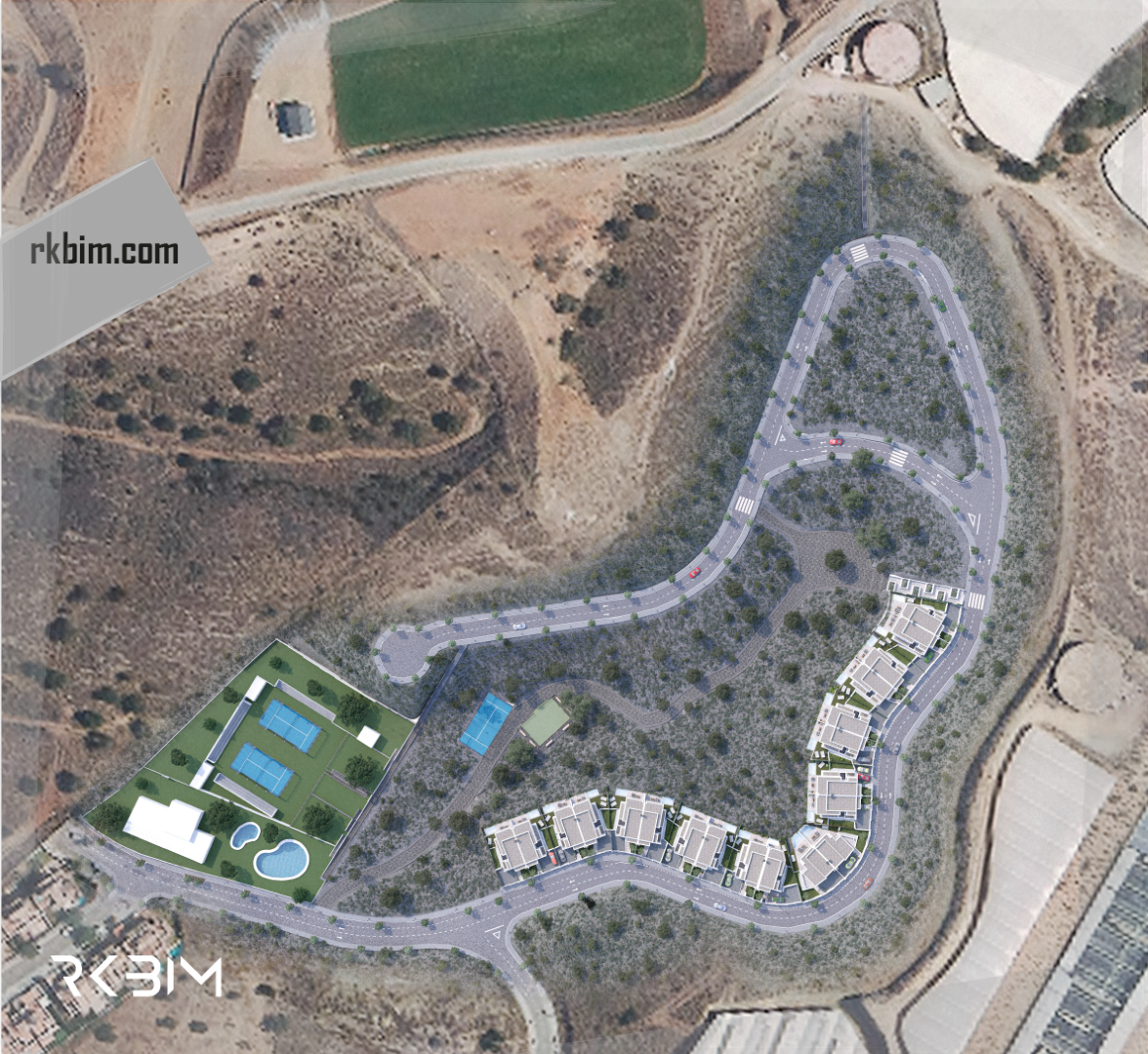

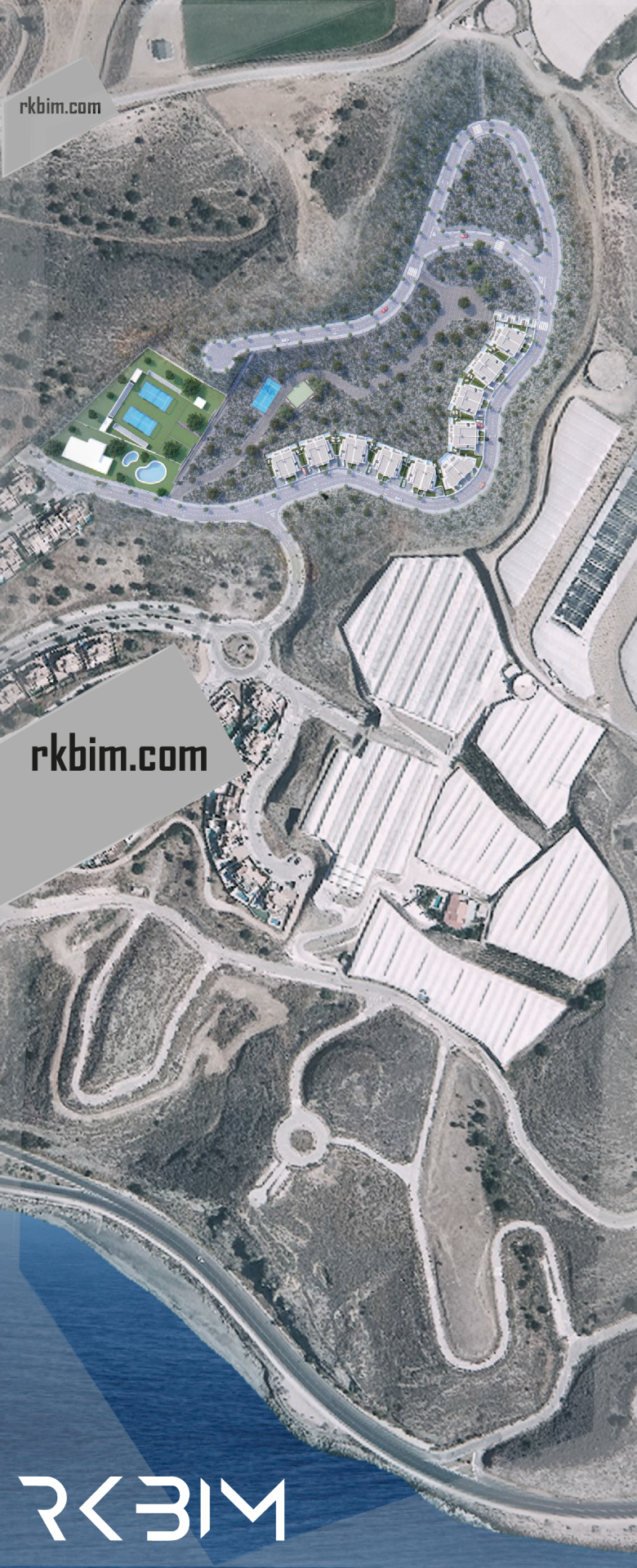

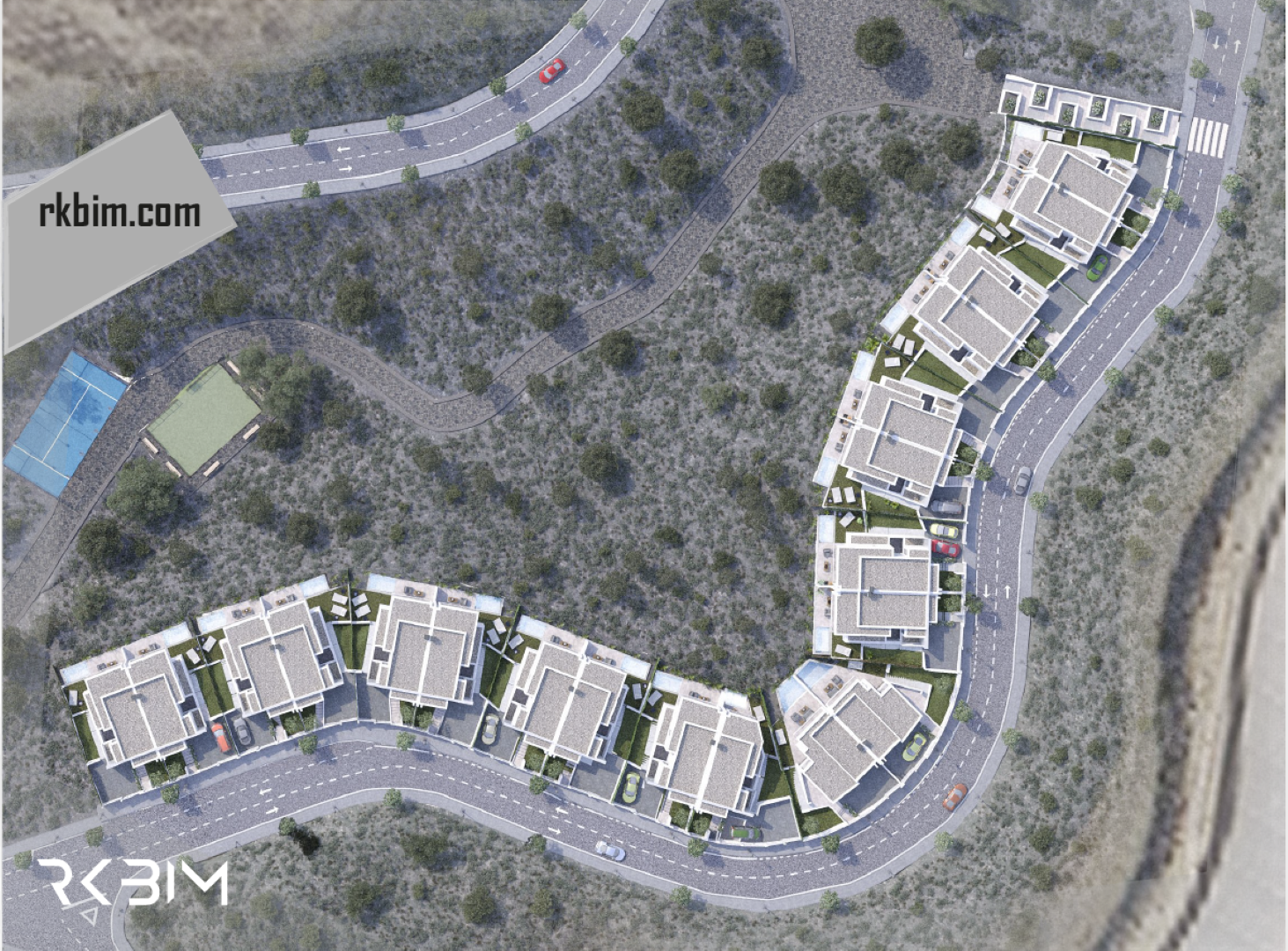

SITE

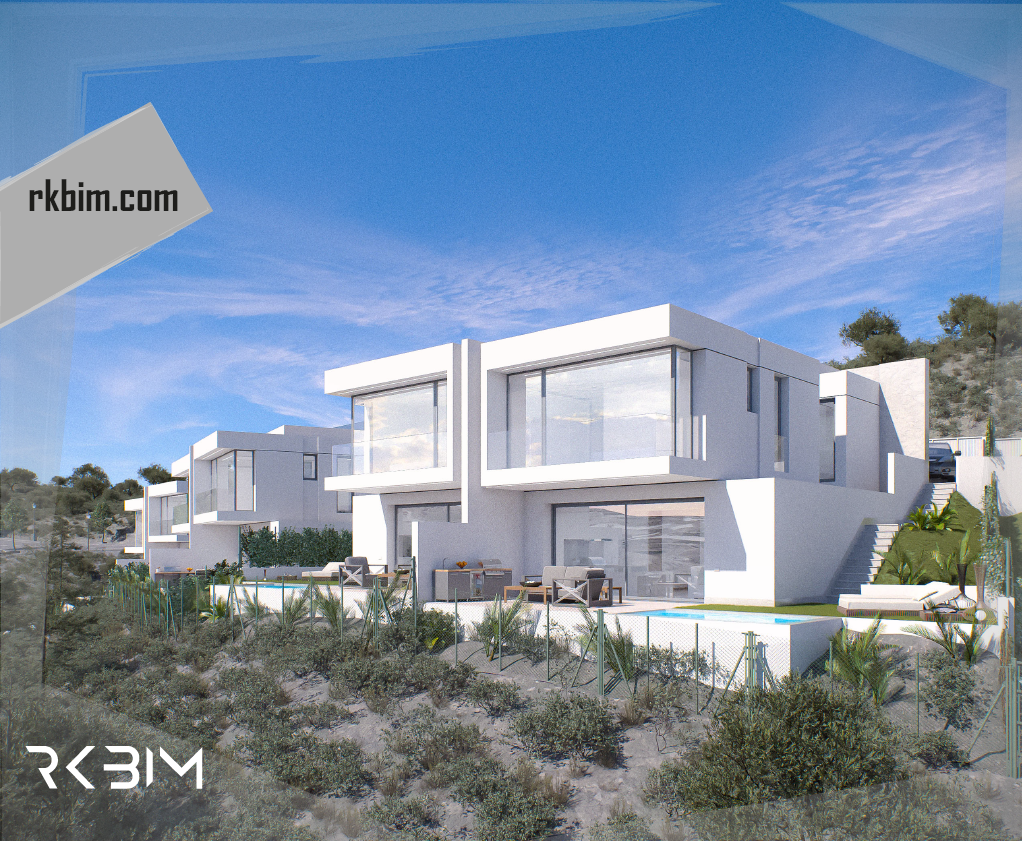

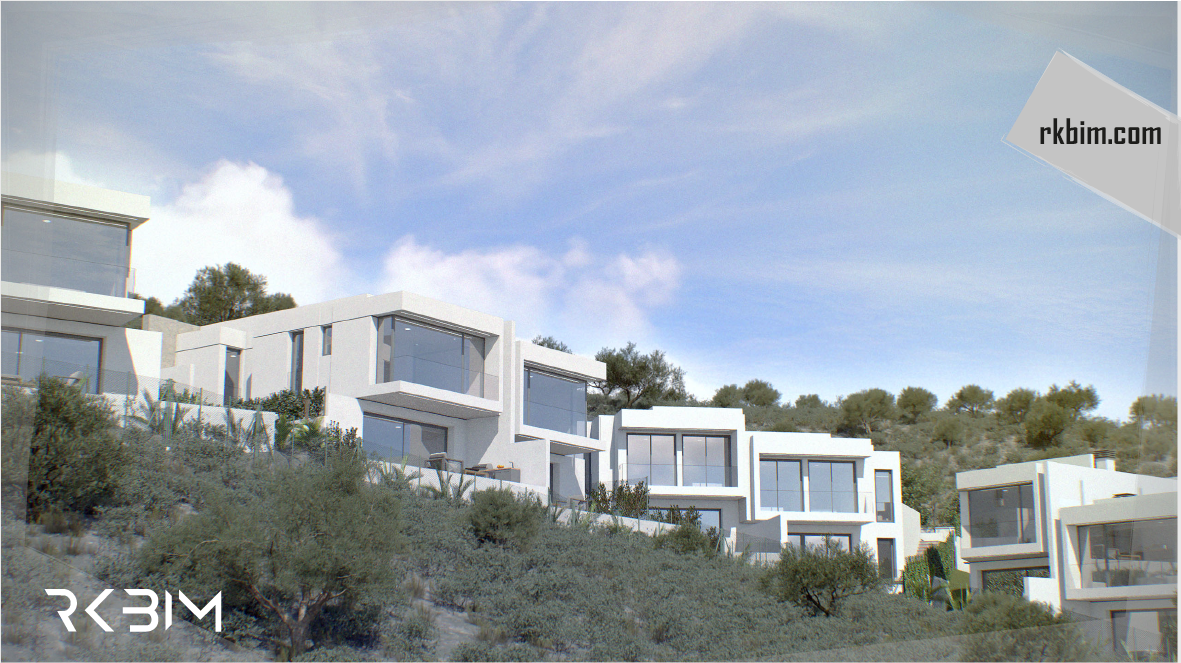

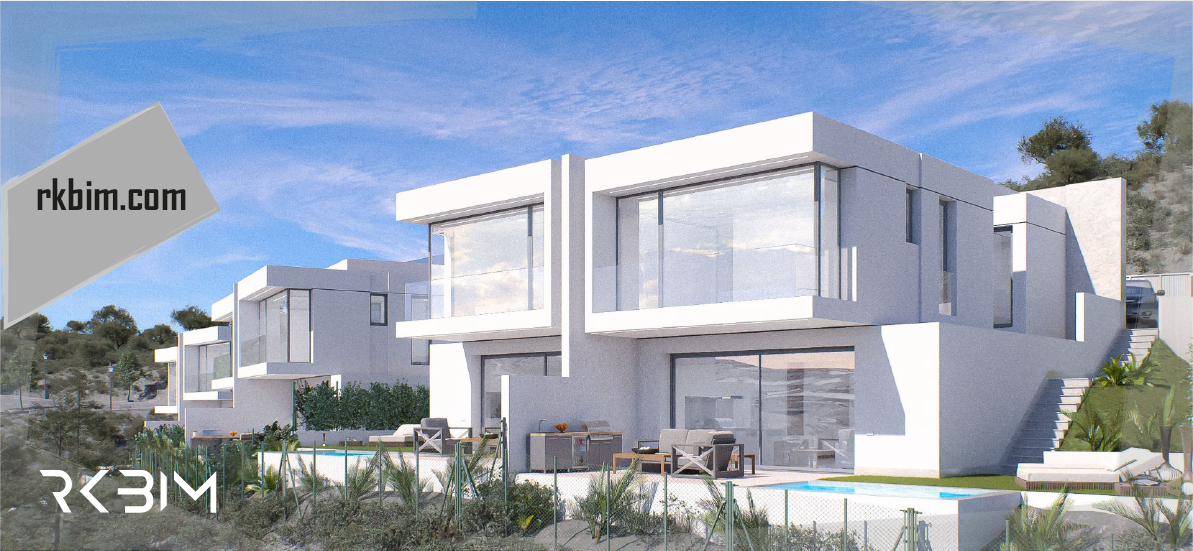

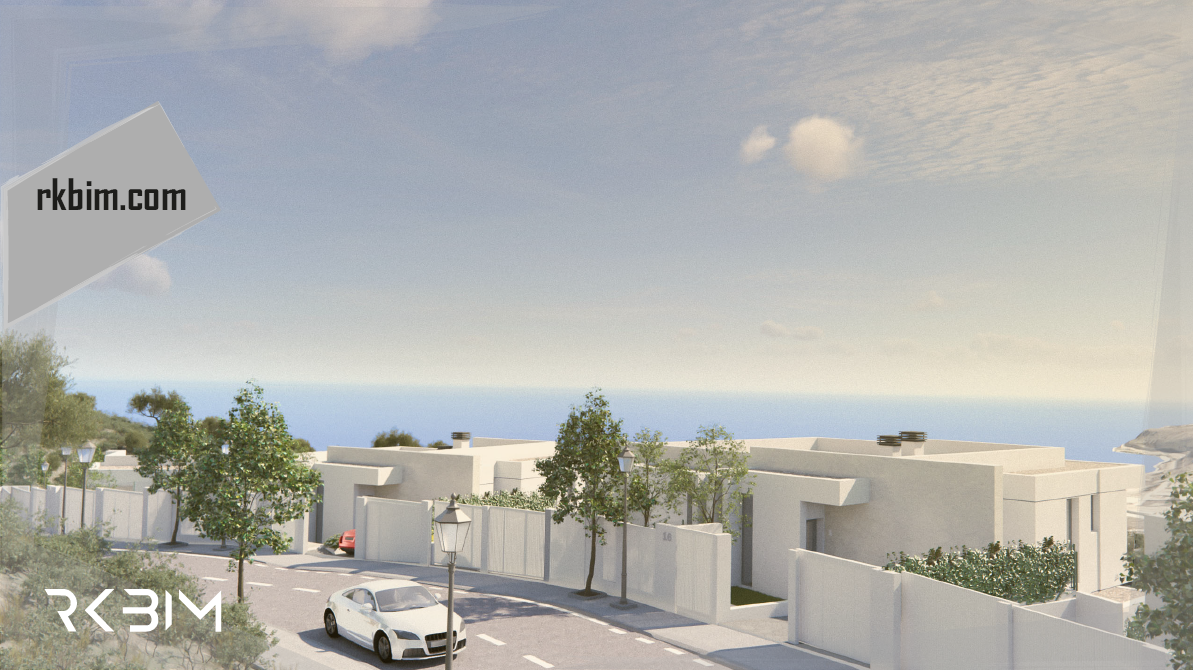

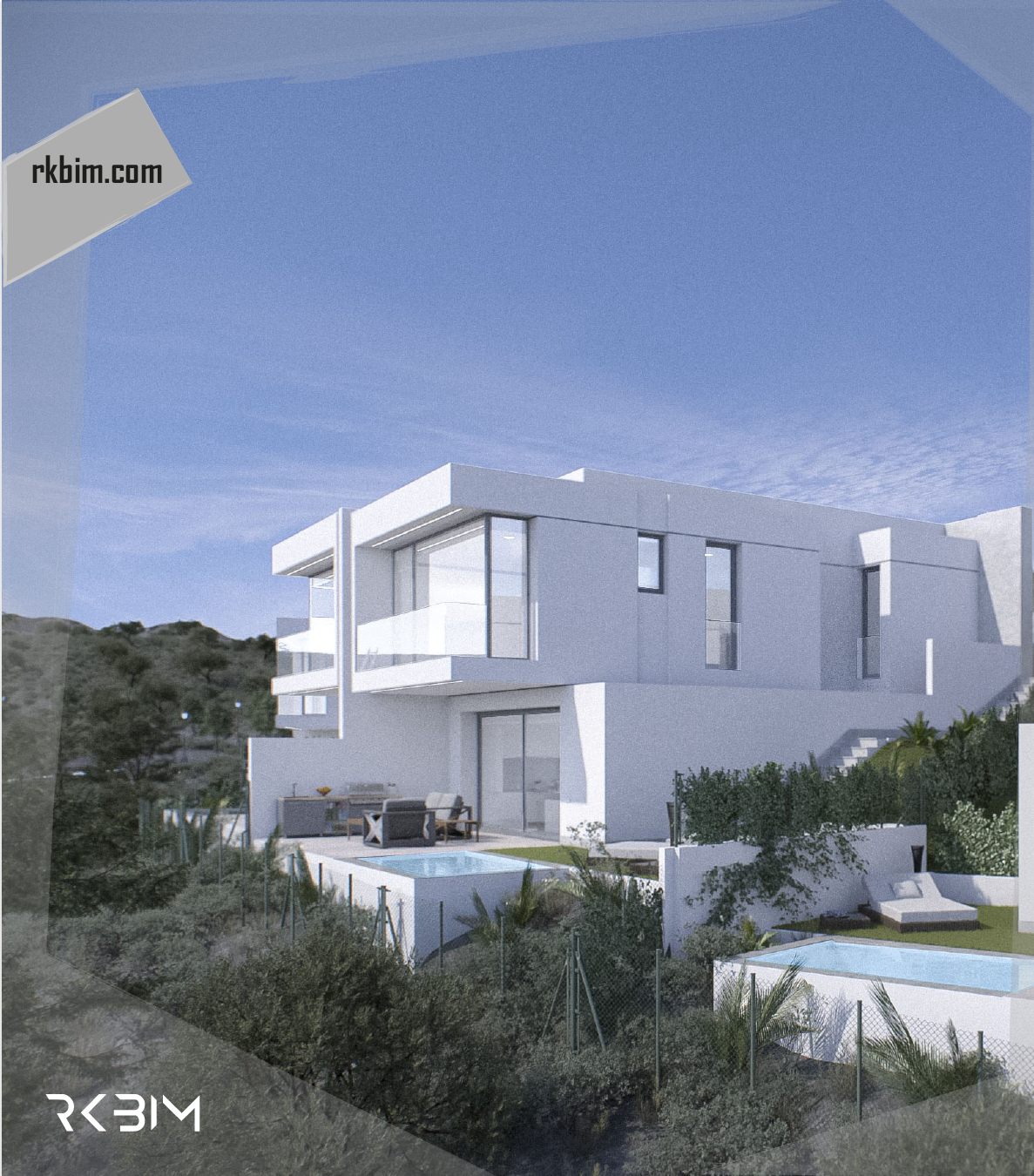

EXTERIORS

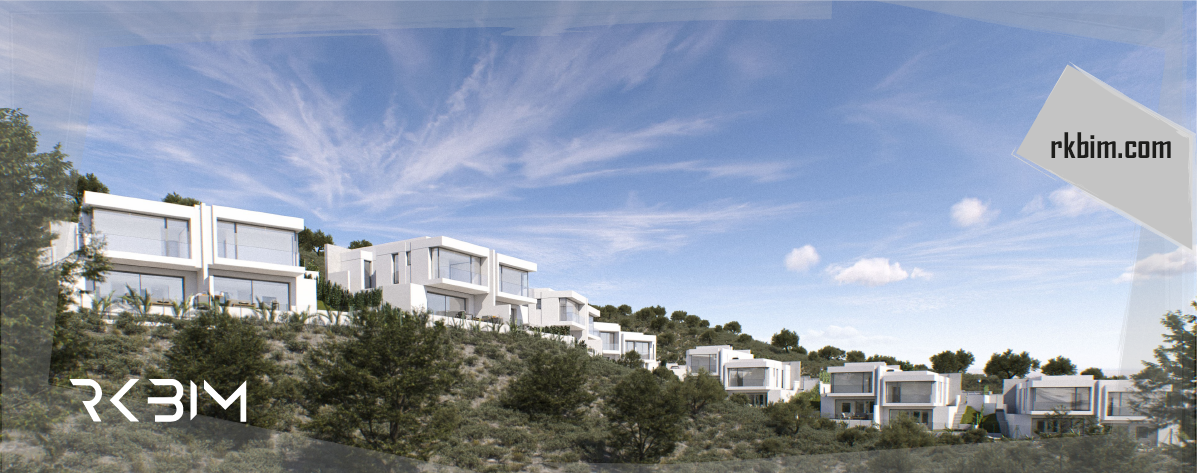

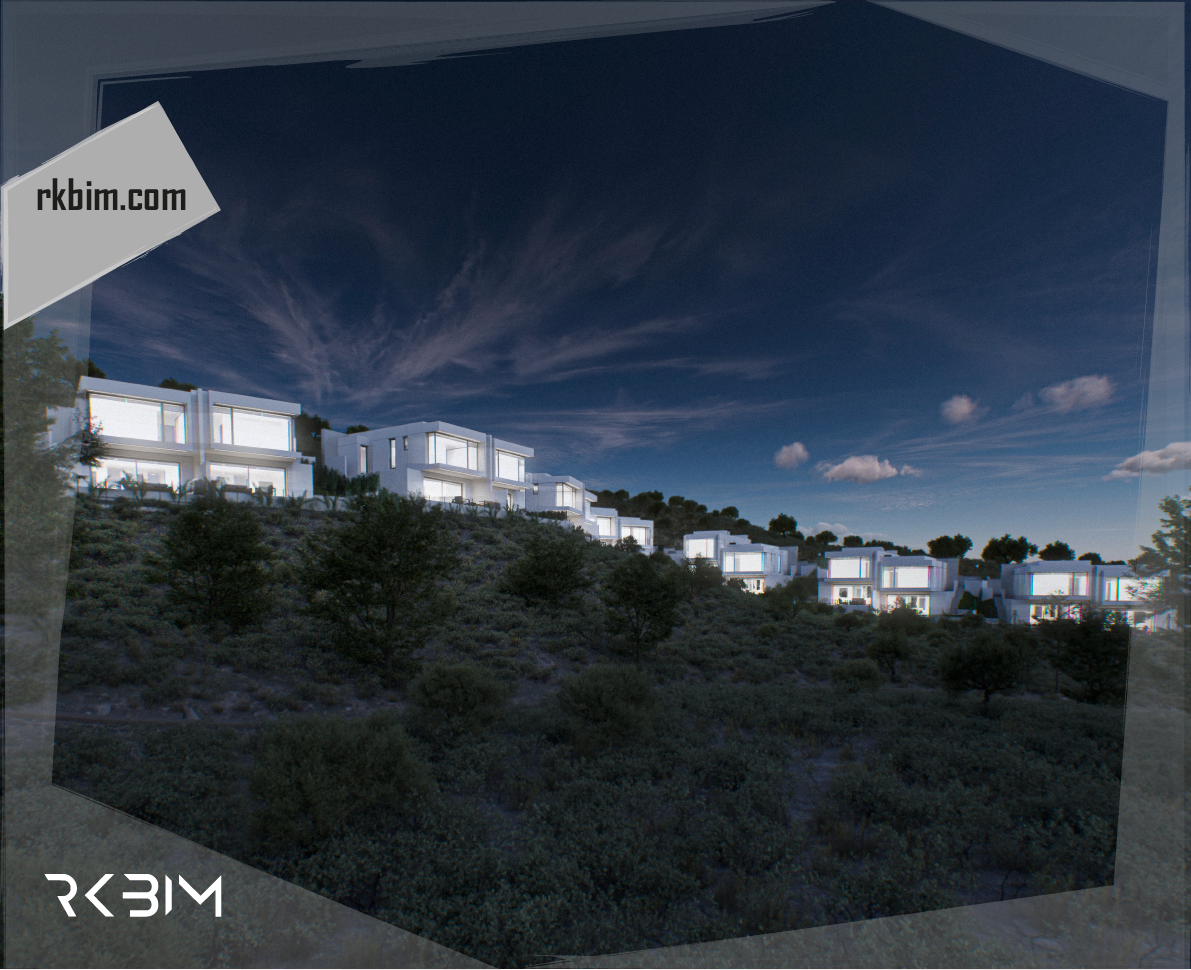

ENVIROMENT

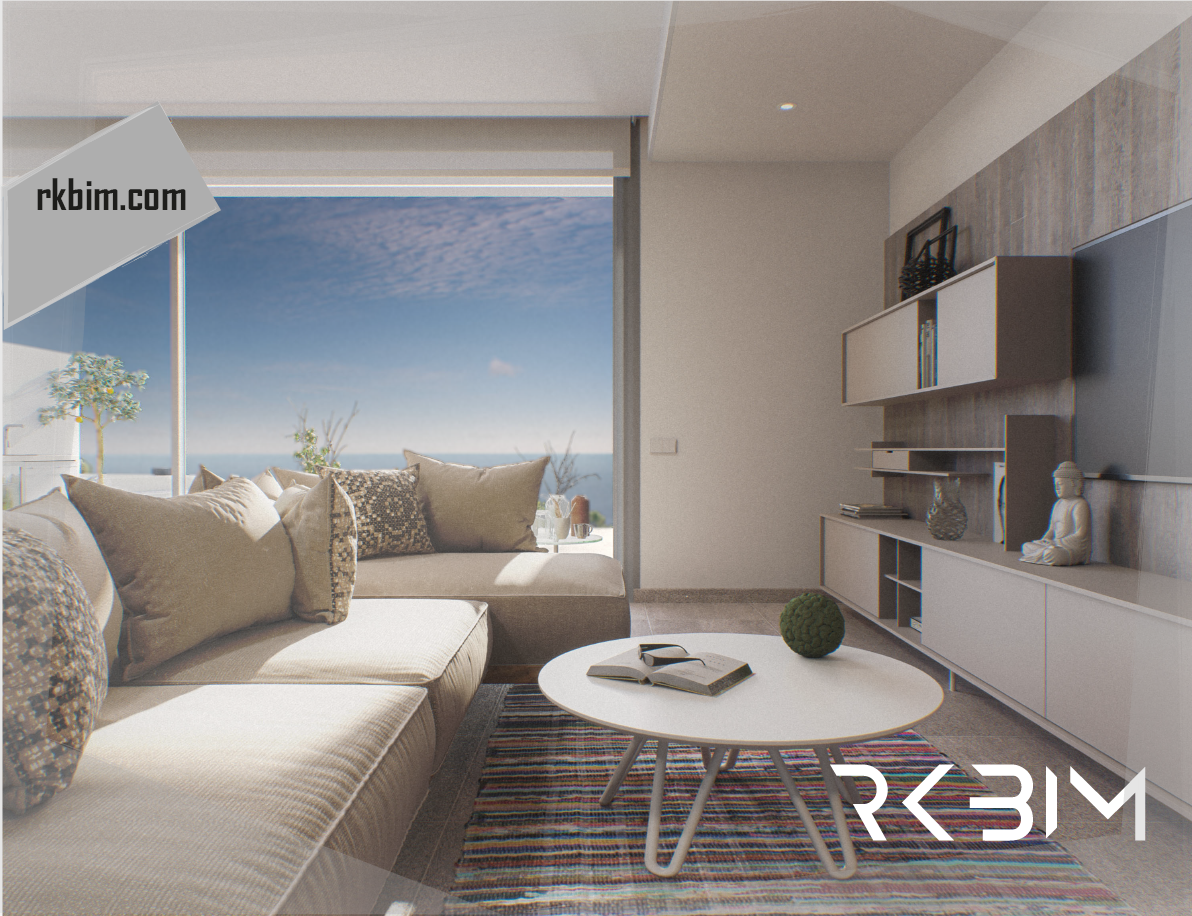

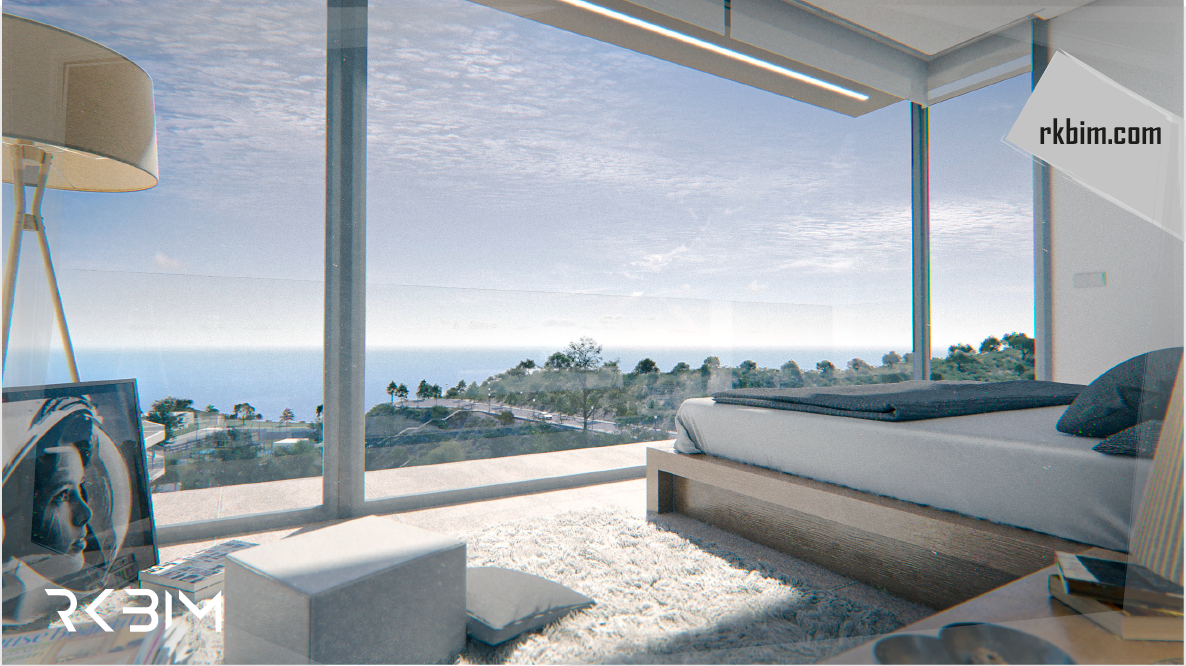

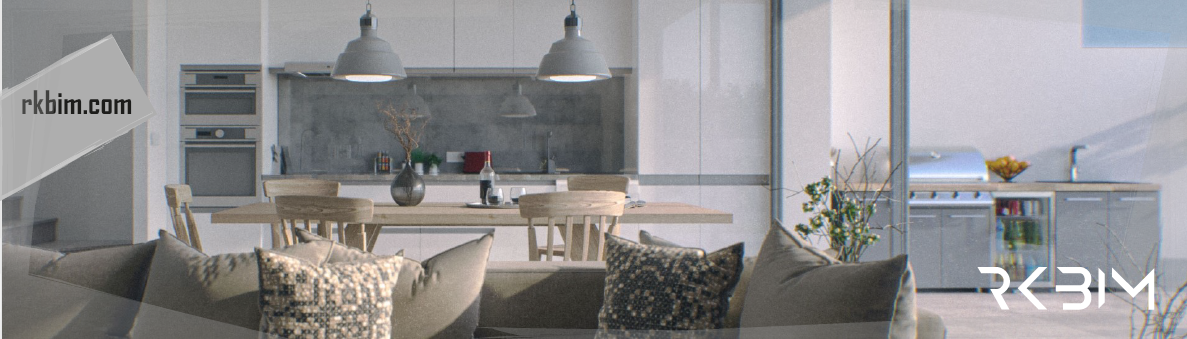

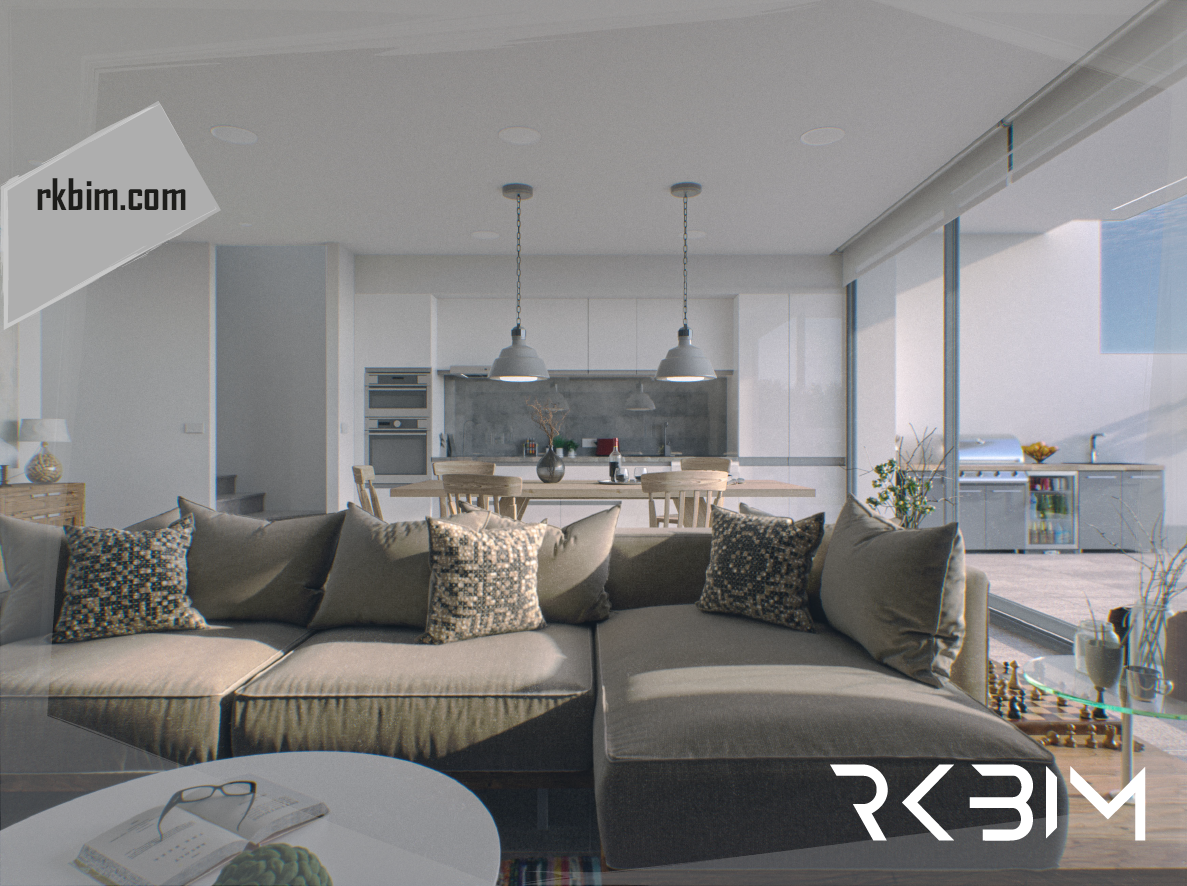

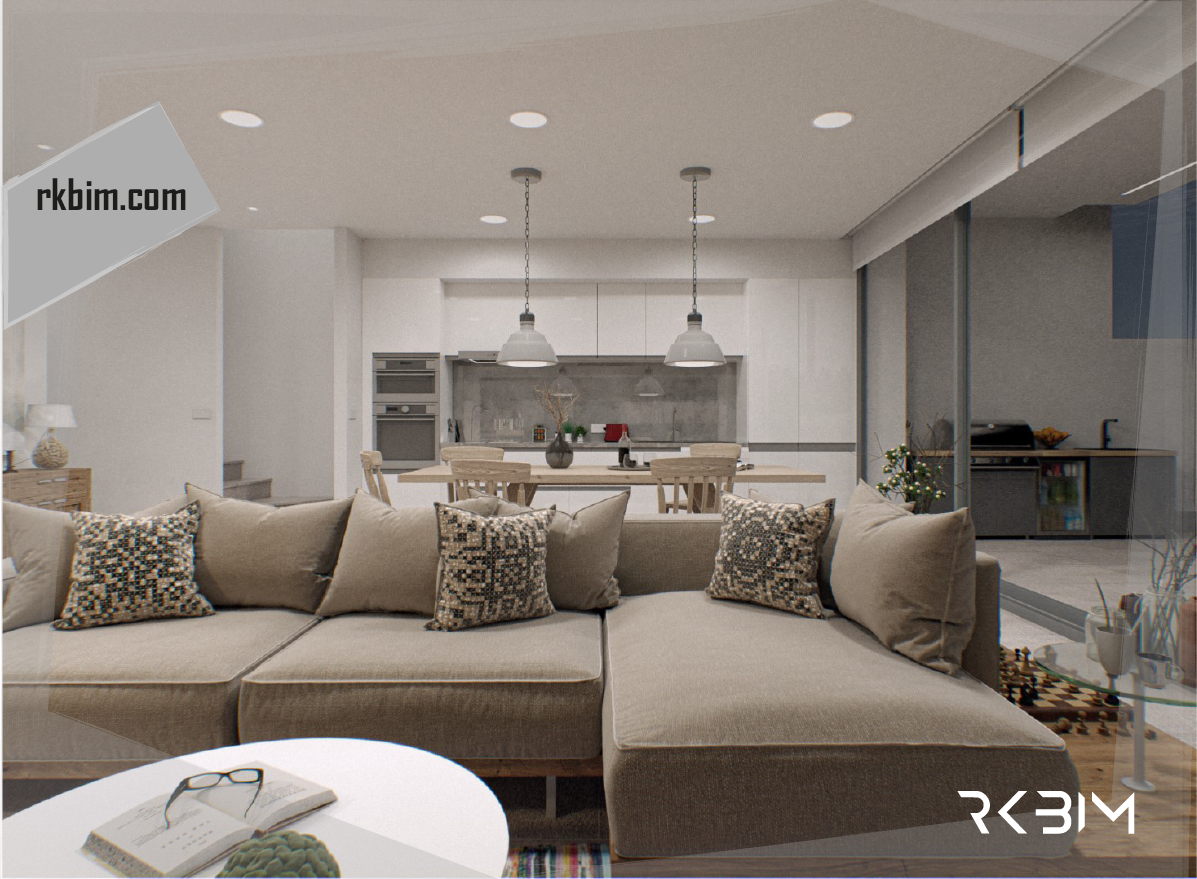

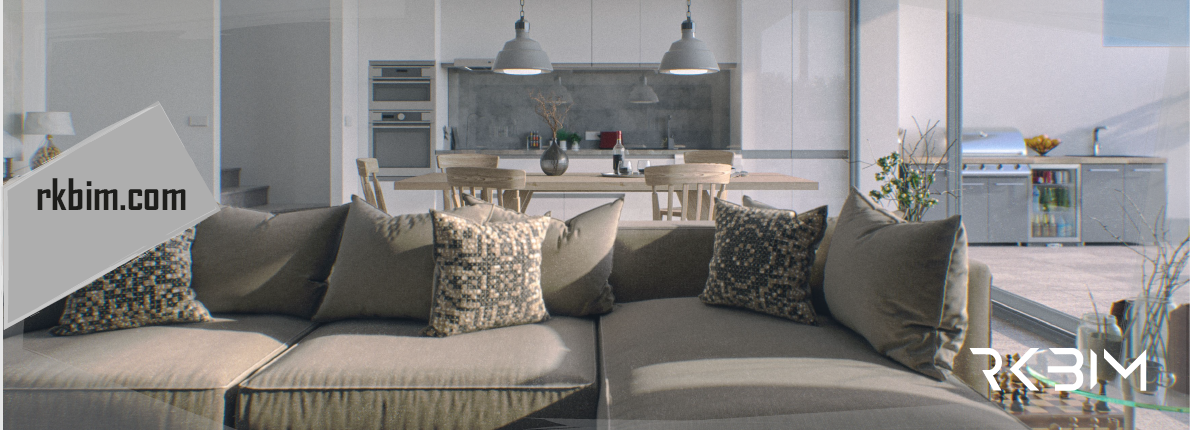

INTERIORS
